Vado Tablet Notion Vertical Concealed Thermostatic Shower Valve Package 22

No reviews yet - Write one

Loading delivery estimate...

What's great about it?

  • Ultra modern concealed thermostatic shower package
  • Comes with a 2 outlet valve, shower head, arm, sliding rail, wall outlet and handset
  • All-flow function allows you to use both outlets at the same time
  • 15 year guarantee

Read full product description

The Vado Notion Shower Package 22 is a fine example of outstanding quality and great design. The pack contains, a vertical 2 outlet thermostatic control valve with "All-flow' function, an Aquablade 200mm x 300mm shower head and arm, a V2 slide rail with single function shower handset plus hose and completed with an Instinct wall outlet. The practical inclusions of the sliding shower rail and the "All-flow' diverter valve mean that this pack not only looks good but also performs excellently too.

Features:
- minimum water pressure 0.2 bar
- chrome finish
- wall mounted

Downloads
Technical Specifications
Product Overview
Product Code TAB-1720/NOT-V2-CP
Type Concealed Shower Sets
Brand Vado
Brand Range Vado Tablet
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 2 Outlets
Temperature Control Thermostatic
Style
Mounting Type Wall Mounted
Finish Chrome
Shape Square
Handle Type Dual Control, Square
Texture Polished
Style Modern
Orientation Portrait

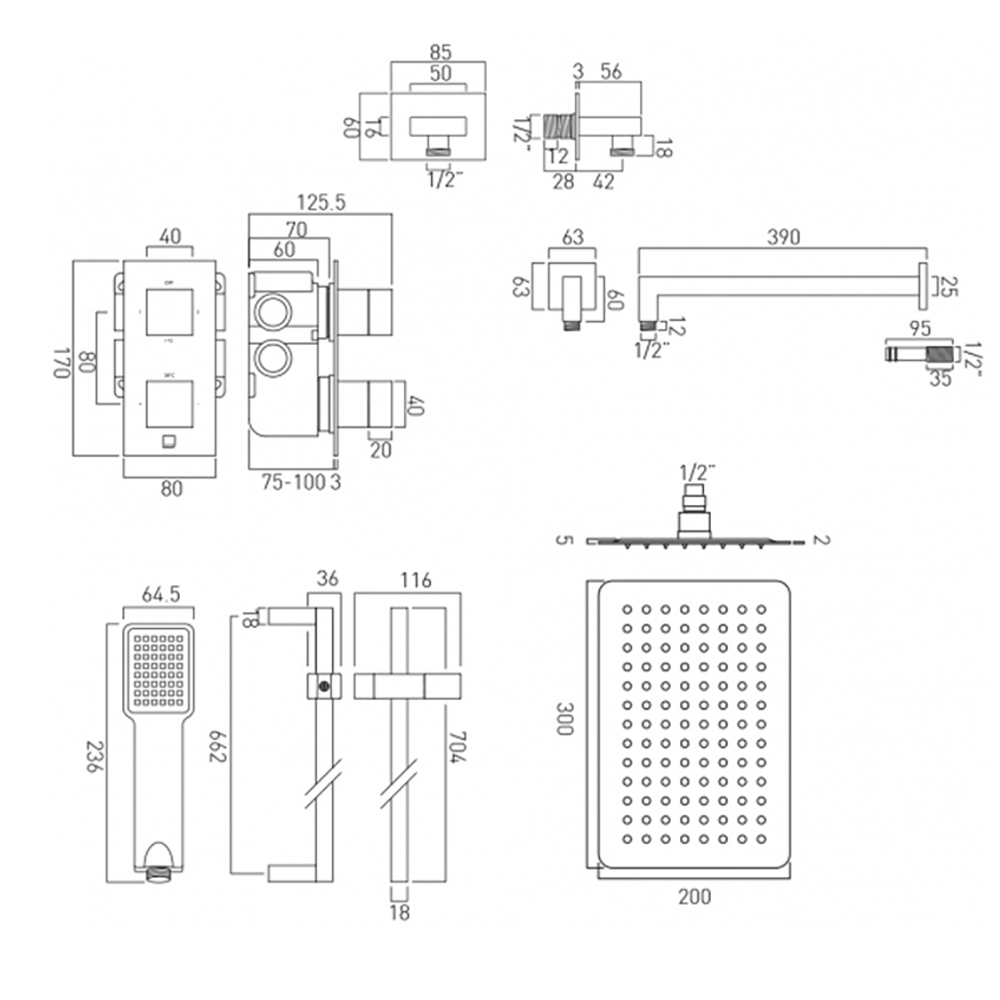

Dimensions
Width (mm) 200
Height (mm) 704
Depth (mm) 390
Flow Rate
Minimum Water PressureMore information 0.2

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
