Crosswater Water Square 1 Outlet Concealed Thermostatic Shower Valve

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £113.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £85.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Stylish thermostatic valve to control one outlet
  • Independently control the temperature and water flow
  • Available with a standard or slim line backplate
  • Ceramic disc technology makes the valves easy and smooth to use
  • Safety controls to protect you and your family from accidental scalding

Read full product description

Linear bathrooms will do well with Crosswater's water square concealed thermostatic shower valve. Unlike your usual shower valves, this pair has cube valve handles! They function as usual shower valves do; the only difference is they are stylish. This product is perfect for cubist bathrooms. If you want to add a simple yet charming pair of shower valves to your bathing area, this is the perfect choice. Since it has a chrome-plated finish, you can easily clean the shower valves and maintain its wonderful shine. Why settle for pieces that look ordinary when you can set your bathroom apart from all the rest?

Downloads
Technical Specifications
Product Overview
Product Code WS1000RC
Type Concealed Shower Valves
Brand Crosswater
Brand Range Crosswater Water Square
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Wall Mounted
Finish Chrome
Shape Square
Handle Type Dual Control, Square
Texture Polished
Style Modern
Orientation Portrait

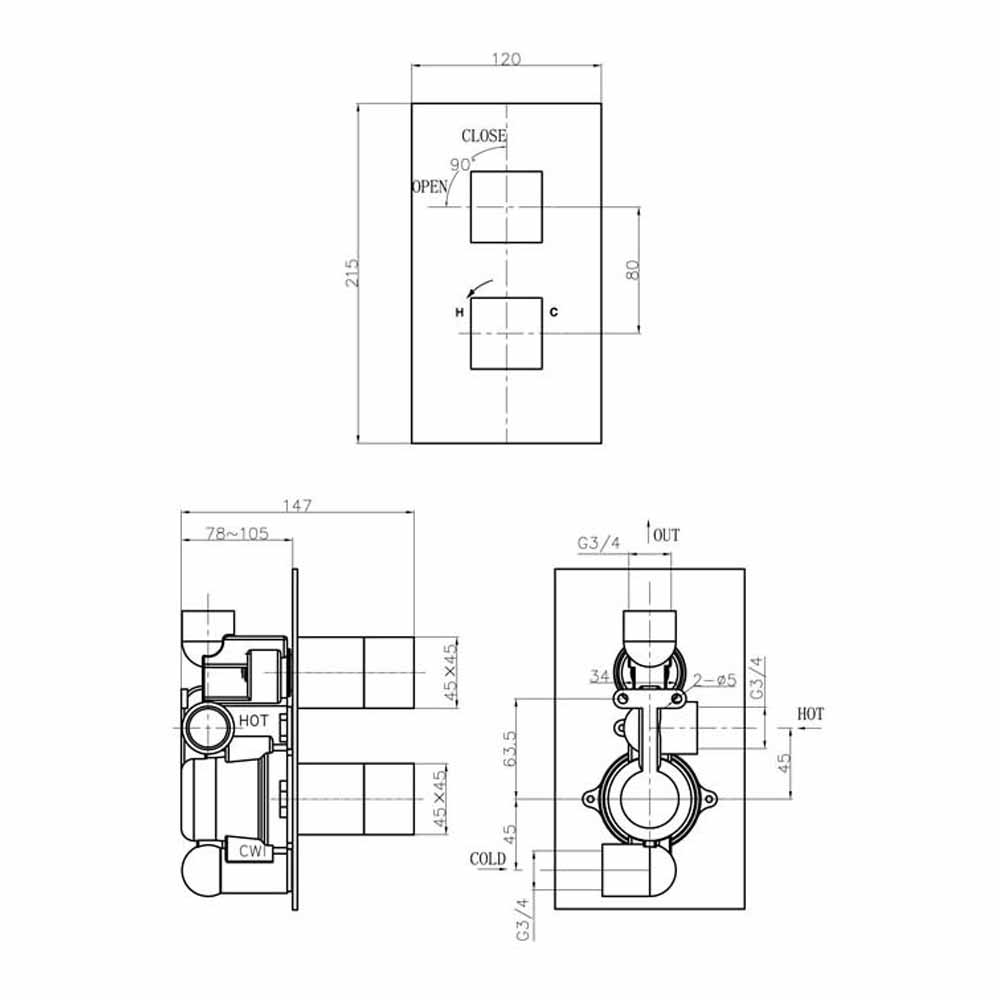

Dimensions
Width (mm) 120
Height (mm) 215
Flow Rate
Minimum Water PressureMore information 0.2

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
