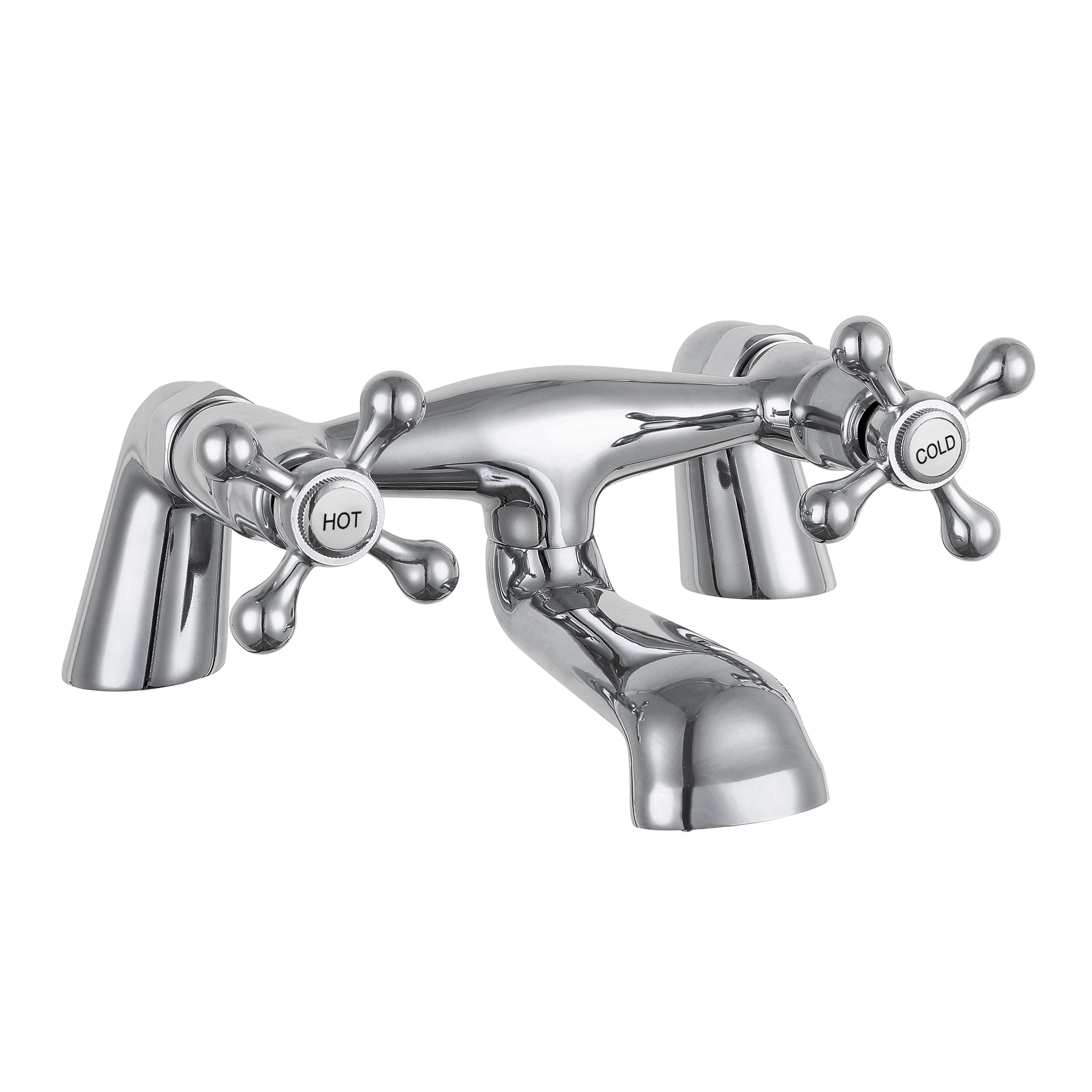

Butler & Rose Carlton Deck Mounted Bath Filler

Rated 4.25/5 from 8 customer reviews

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £26.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £20.00 with Clearpay Learn more about Clearpay

What's great about it?

  • Deck-mounted bridge bath filler tap with period features to match traditional bathrooms
  • Manufactured from reliable solid brass in a Polished Chrome finish that adds sleek appeal
  • Fitted with quarter-turn ceramic disc cartridge valves for longevity and easy operation
  • Elegant front-facing crosshead valves with temperature indices increase ease of use

Read full product description

Finding the right taps for your period style bathroom is tricky. A lot of taps look old and traditional because they are old and traditional, but not the Butler & Rose Carlton. Yes, they look traditional, but they are made with high quality brass that gives them a really solid feel and then they're chrome plated to make them really stand out. And stand out they will. The detailing on them is exquisite and they would not look out of place in Buckingham Palace.

Features:
  • Made from solid brass
  • Chrome plated finish
  • Ceramic disc technology
  • Minimum pressure 0.5 bar
  • 10 year guarantee

Dimensions:
  • Height - 76mm
  • Projection - 157mm

Downloads
Cleaning Instructions
Product Overview
Product Code BRCAR04
Type Bath Fillers, Bridge Bath Taps
Brand Butler & Rose
Brand Range Butler & Rose Carlton
GuaranteeMore information 10 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 1 Outlet
Temperature Control Manual
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Deck Mounted
Finish Chrome
Shape Round
Handle Type Crosshead, Dual Control
Spout Type Curved Spout
Texture Polished
Tap Holes 2 Holes
Style Traditional
Dimensions
Height (mm) 76
Projection (mm) 157
Flow Rate
Flow Rate at 0.5 Bar (l/min) 10.3
Flow Rate at 1 Bar (l/min) 16
Flow Rate at 1.5 Bar (l/min) 20.3
Minimum Water PressureMore information 0.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
