Vado Tablet Notion Horizontal 3 Outlet Concealed Thermostatic Shower Valve

No reviews yet - Write one

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £231.33 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £173.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Concealed thermostatic shower valve
  • All-flow function allows you to turn on all 3 outlets at the same time
  • Choose between horizontal or vertical orientation
  • 15 year guarantee

Read full product description

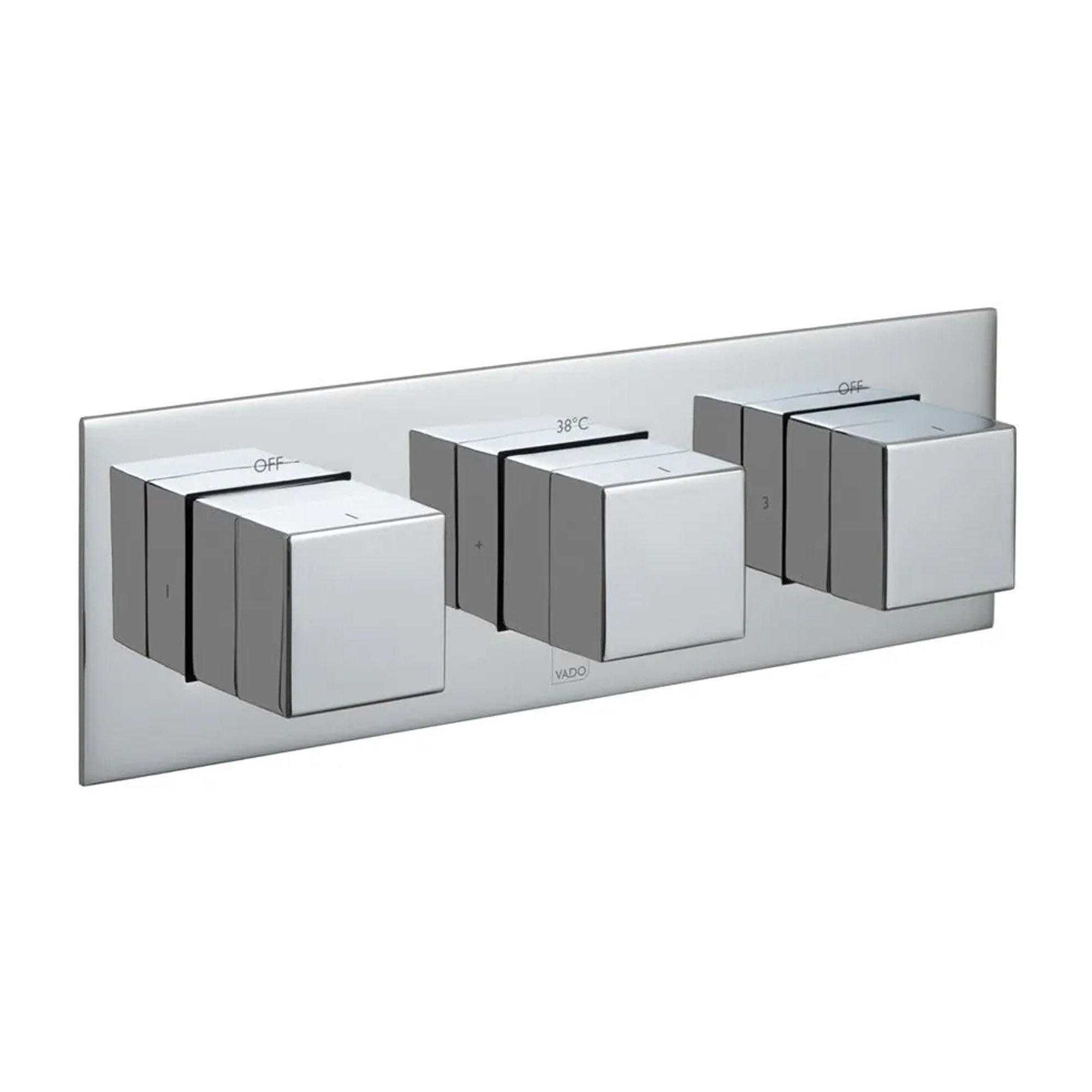

The Vado Notion Horizontal thermostatic outlet will provide a modern finish to the shower, with its square, clean cut design. The unit has 3 dials to control the flow of water, including a thermostatic valve so that the user does not have to waste time and water finding their preferred water temperature. The all-flow function offers a practical solution when water is needed from 2 outlets at the same time.

Features:
- Minimum Water Pressure 0.2 bar (shower) 1.0 bar (bath)
- Chrome Finish
- Wall Mounted

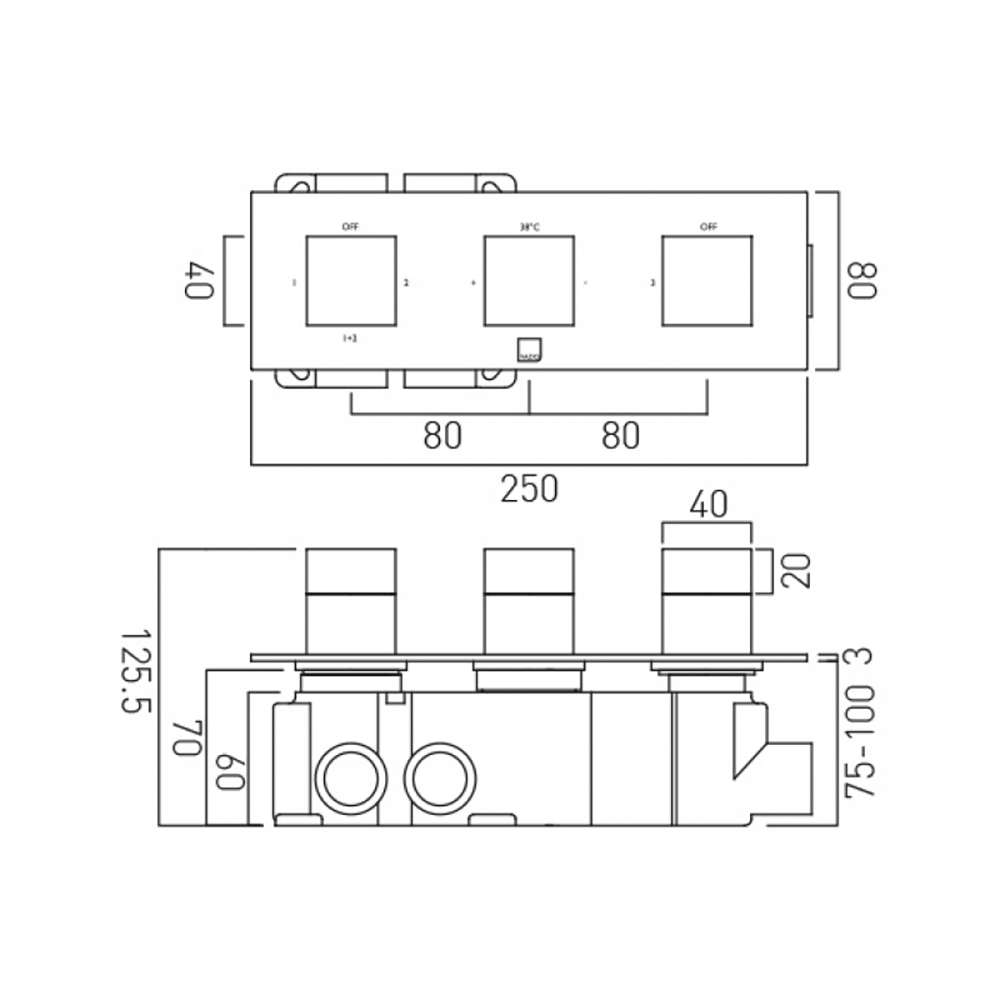

Dimensions:
- Size 250mm x 80mm

Flow rates:
  • Outlet 1: 30.1 l/min
  • Outlet 2: 30.1 l/min
  • Outlet 3: 33.2 l/min

Downloads
Technical Specifications
Product Overview
Product Code TAB-128/3-H-NOT-C/P
Type Concealed Shower Valves
Brand Vado
Brand Range Vado Tablet
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Number of Outlets 3 Outlets
Temperature Control Thermostatic
Style
Mounting Type Wall Mounted
Finish Chrome
Shape Square
Handle Type Square, Triple Control
Texture Polished
Style Modern
Orientation Landscape
Dimensions
Width (mm) 250
Height (mm) 80
Depth (mm) 126
Flow Rate
Flow Rate at 3 Bar (l/min) 33.2
Minimum Water PressureMore information 1

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
