Vado Phase Single Lever Mono Basin Mixer

Rated 5.00/5 from 1 customer review

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £70.99 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £53.25 with Clearpay Learn more about Clearpay

What's great about it?

  • Square basin mixer with single lever for easy flow & temperature control
  • Hard-wearing brassware with corrosion-resistant chrome plating
  • Anti-splash water flow aerator included
  • Suitable for all water pressure systems
  • 15 year manufacturer's guarantee

Read full product description

The softened angles of this eye-catching basin tap will bring a note of boldness to your bathroom. A strong design that cleverly fuses cubic forms with calming curves to create a look that is both strong yet sophisticated.
The body of this piece has been given that beautiful chrome-plated finish which makes it easy to maintain and wonderful to look at. On either side of the top corners of the lever, you also get nice indicators for hot and cold water.
The Phase Basin Tap works particularly well with square or rectangular basins. The gently contoured angles and simple flat surfaces work in-sync demonstrating the quality of this innovative design.

Other Features:
  • Minimum of 0.2 bar & maximum of 3.0 bar water pressure
  • Ceramic disc cartridge for smooth and lasting performance
  • Hard wearing and durable brass construction
  • One-hand operation: water flow & temperature controlled by single lever
  • Includes fitting kit
  • Waste not included

Downloads
Technical Specifications
Cleaning Instructions
Product Overview
Product Code PHA-200F/SB-C/P
Type Mono Basin Mixers
Brand Vado
Brand Range Vado Phase
GuaranteeMore information 15 Years

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass
Cartridge TypeMore information Ceramic Disc
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Mounting Type Deck Mounted
Finish Chrome
Shape Square
Handle Type Lever, Single Control
Spout Type Fixed Spout, L-Shaped Spout
Texture Polished
Tap Holes Mono
Style Modern

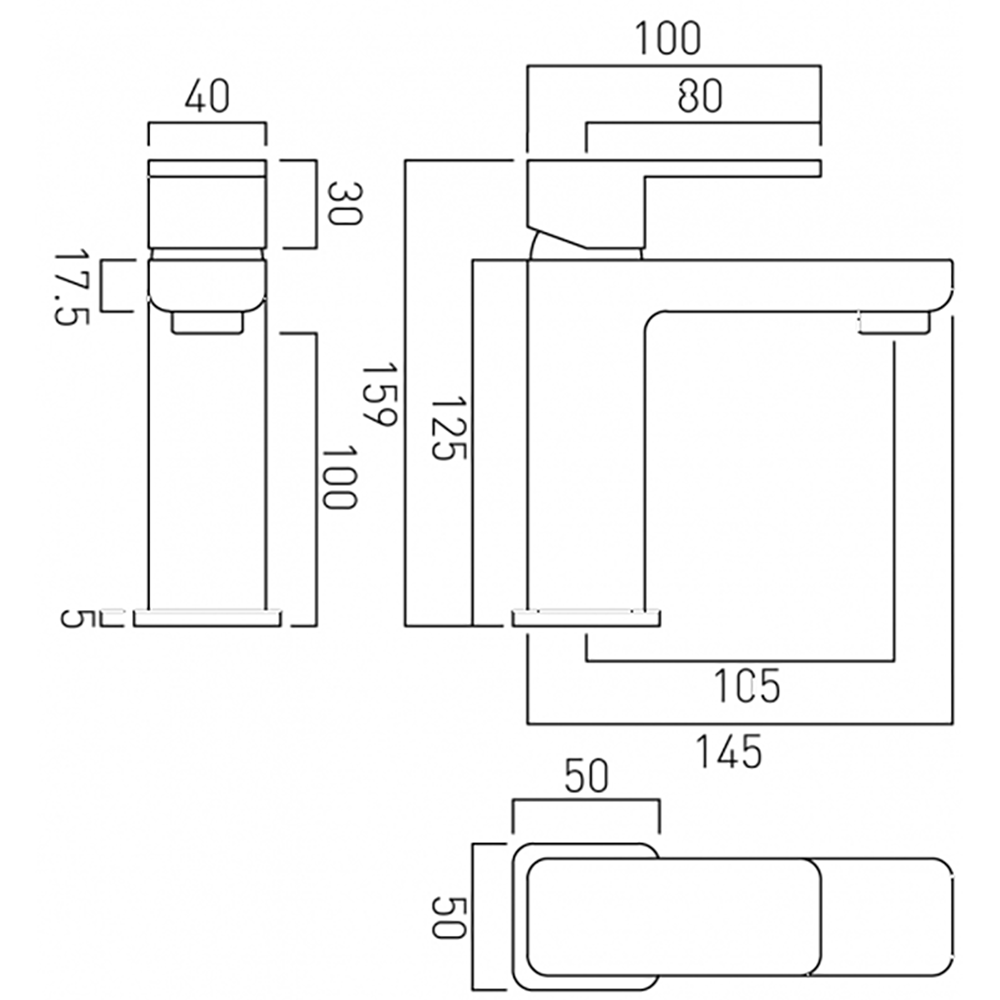

Dimensions
Width (mm) 50
Height (mm) 159
Depth (mm) 145
Projection (mm) 105
Flow Rate
Minimum Water PressureMore information 0.2

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.

(1)
Rated 5.00/5 from 1 customer review

£212.99
