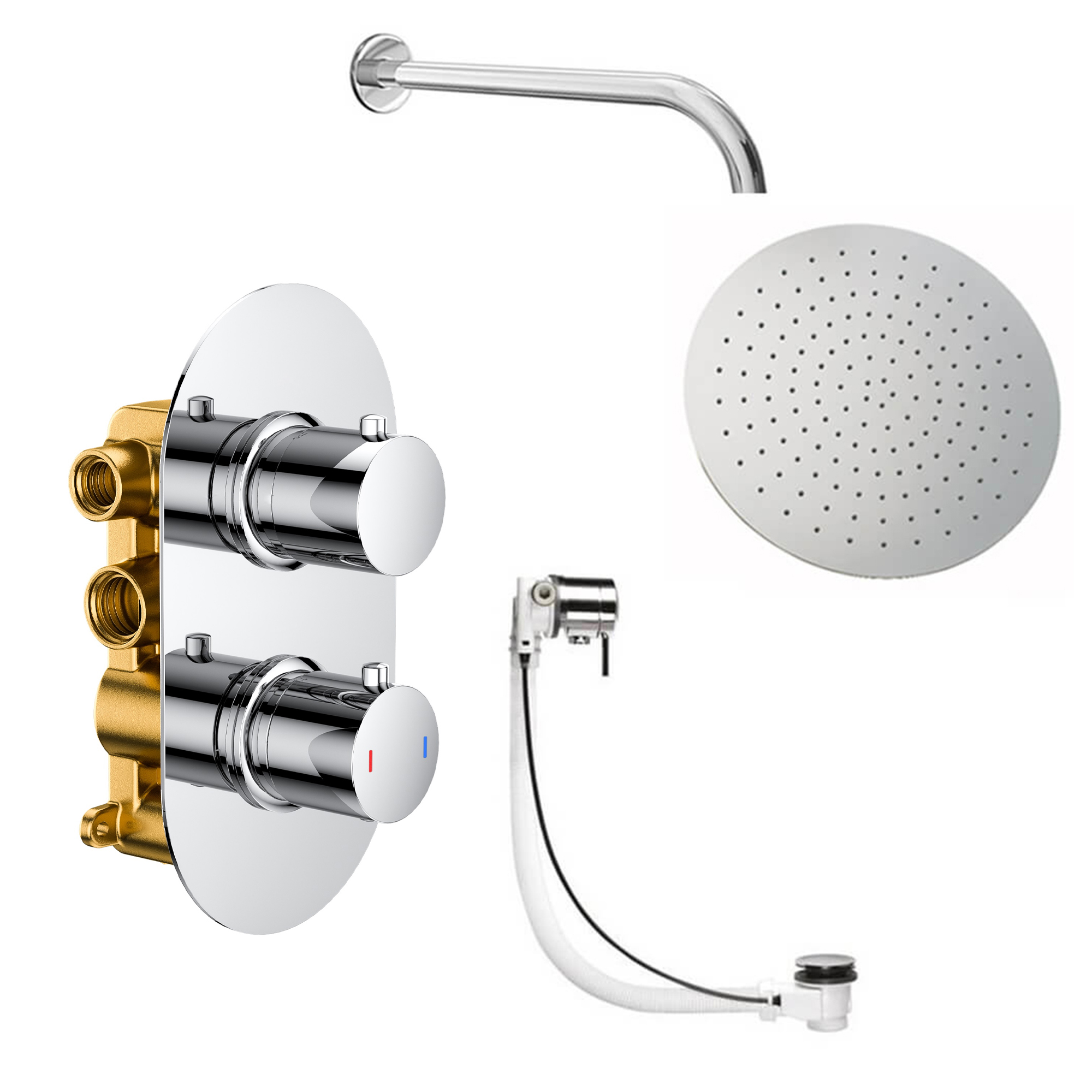

Imogen Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler

No reviews yet - Write one
Please select an option
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £76.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £57.50 with Clearpay Learn more about Clearpay

What's great about it?

  • Shower pack includes: 2 outlet concealed shower valve, overflow bath filler, shower head & arm
  • Choose between 2 overflow bath fillers, 4 shower arms and 3 shower heads to personalise your bathroom
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • Ceramic disc technology
  • Fantastic manufacturer's guarantee

Read full product description

Elevate your bathroom with the Drench Imogen Concealed Shower Valve, Fixed Shower Head & Overflow Bath Filler by adding a touch of luxury to your space. Imogen offers a range of choices to help you create the bathroom you've always wanted.

Customise your setup by choosing from three different shower heads, four shower arms, and an overflow bath filler, allowing for complete personalisation. The Imogen valve also gives you the option to install it either vertically or horizontally, so you can set up your shower just the way you like it.

Inside the valve, you'll find our advanced Anti Calc Thermostatic Cartridge, designed to effectively address common issues like changes in water temperature and reduced water flow due to hidden blockages. Simply press down on the safety button on the thermo handle, then turn the handle to the hottest setting and then to the coldest setting, allowing the cartridge to efficiently flush out dirt, limescale, and debris that can accumulate over time.

Bath fillers are a great way to modernise your bathroom, getting rid of the clutter from traditional bath taps on your bath ledge. They're also easy to install, and you can control both your shower and bath filler using the same valve.

Valve Features:
  • Modern 2 outlet concealed design with dual handle control
  • Sleek Chrome finish
  • Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from high grade brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS approved
  • Complies with BSEN 1111
  • Covered by a 10 year manufacturer’s guarantee

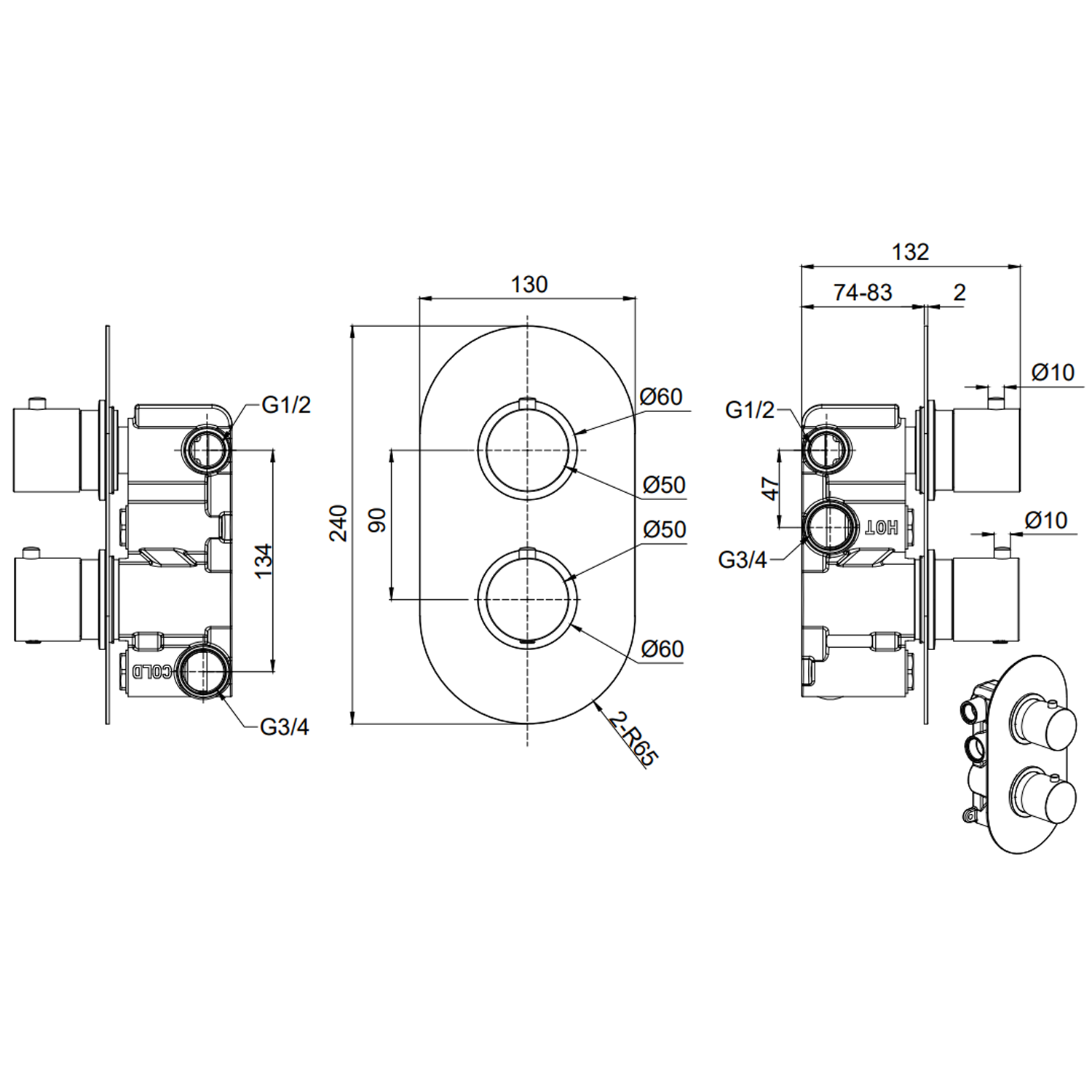

Dimensions:
  • Height: 240mm
  • Width: 130mm

Flow rates:
  • 0.5 bar (l/min): 9.7
  • 1.0 bar (l/min): 13.8
  • 1.5 bar (l/min): 16.8
  • 2.0 bar (l/min): 19.4
  • 3.0 bar (l/min): 23.5
  • 4.0 bar (l/min): 27.4
  • 5.0 bar (l/min): 30.6

Shower Head Features:
  • Choose from 200, 300, or 400mm
  • Stainless steel shower head in a sleek Chrome finish
  • Swivel joint easily adjusts the angle of the head
  • 400mm head features air injection technology - providing softer showering experience & reducing water usage by mixing air with water
  • Easy-clean rubber nozzles for easy cleaning
  • 200 & 300mm heads covered by a lifetime manufacturer’s guarantee
  • 1 year manufacturer's guarantee on 400mm head

Shower Arm Features:
  • 4 shower arms to choose from to fully customise your shower
  • Constructed from brass with a dazzling Chrome finish
  • 150 & 300mm ceiling arms - 10 year manufacturer’s guarantee
  • 300mm & 380mm curved wall arms - 5 year manufacturer’s guarantee

Overflow Bath Filler with Pop-up Waste Features:
  • Integrated overflow bath filler and pop up bath waste
  • Constructed from brass with a Polished Chrome finish
  • Suitable for baths up to 30mm thick
  • Minimum water pressure required: 0.5 bar
  • Covered by a 1 year manufacturer's guarantee

Overflow Bath Filler with Clicker Waste Features:
  • Integrated overflow bath filler and click clack bath waste
  • Constructed from brass with a Polished Chrome finish
  • Minimum water pressure required: 1 bar
  • Covered by a 1 year manufacturer's guarantee

Product Overview
Product Code dr-imogen-con-bath-shower-kit
Type Concealed Valve Shower & Bath Sets
Brand Drench
Brand Range Drench Imogen
GuaranteeMore information Various

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass, Stainless Steel, Zinc Alloy
Number of Outlets 2 Outlets
Temperature Control Thermostatic
Cartridge TypeMore information Ceramic Disc
Popular Features Easy Clean Nozzles
Taps use either a ceramic disc cartridge or a rubber compression washer to control flow. Rubber washers will naturally wear down with use, and the tap handle will require more and more rotations to turn on or off. On the plus side, it's very easy to replace a rubber washer and they're available everywhere.

Ceramic disc cartridges need only a 90-degree rotation to fully open or close, and the 2 ceramic plates are incredibly hard-wearing and resilient. They're more expensive to make, but they allow for a huge range of designs, easy operation and simple maintenance if needed.

Whilst it is rare for a ceramic cartridge to need replacing, you may very occasionally need to remove and rinse the cartridge if grit or debris within the water system is preventing the 2 plates from closing properly. Much like replacing a rubber washer, this is a quick and easy job, and will ensure many years of use.
Style
Finish Chrome
Shape Round
Handle Type Dual Control, Round
Spout Type Overflow Spout
Texture Polished
Style Modern
Orientation Landscape, Portrait
Mounting Type Select an option first
Flow Rate
Flow Rate at 0.5 Bar (l/min) 9.7
Flow Rate at 1 Bar (l/min) 13.8
Flow Rate at 1.5 Bar (l/min) 16.8
Flow Rate at 2 Bar (l/min) 19.4
Flow Rate at 3 Bar (l/min) 23.5
Flow Rate at 4 Bar (l/min) 27.4
Flow Rate at 5 Bar (l/min) 30.6
Minimum Water Pressure Select an option first
