Brooke Concealed Shower Valve & Fixed Shower Head Package

No reviews yet - Write one
Please select an option

Loading delivery estimate...

Klarna
Pay 3 interest-free instalments of £66.66 with Klarna Learn more about Klarna
Clearpay
Pay 4 interest-free instalments of £50.00 with Clearpay Learn more about Clearpay

What's great about it?

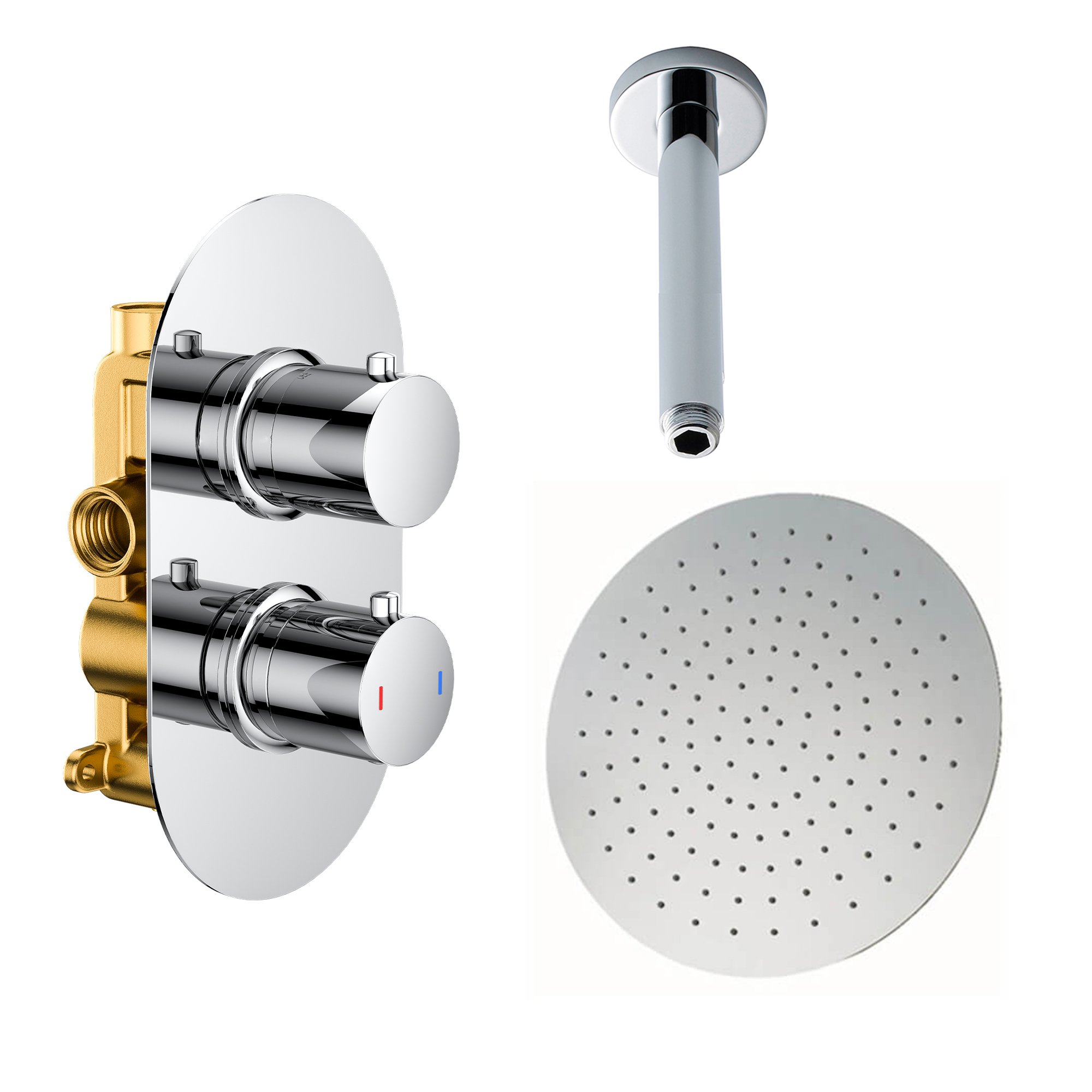

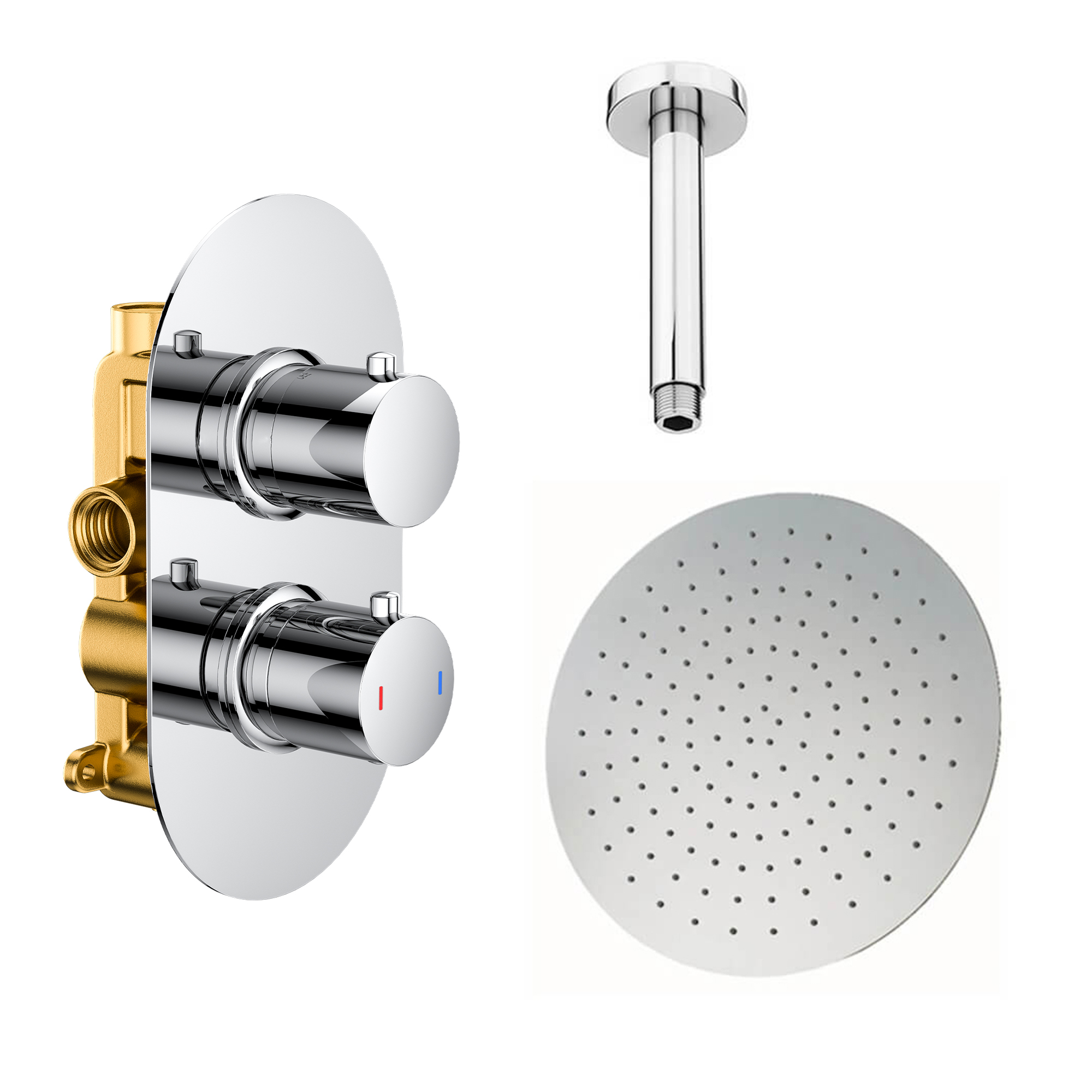

  • Shower pack includes: 1 outlet shower valve, 400mm shower head & ceiling arm
  • Choose between 150mm or 300mm ceiling mounted shower arm
  • Anti Calc thermostatic cartridge keeps your valve free from limescale and debris
  • Ceramic disc technology
  • 0.5 bar minimum water pressure required
  • Fantastic manufacturer's guarantee

Read full product description

Upgrade your bathroom or en suite with the sleek Drench Brooke Concealed Thermostatic Shower Valve and Ceiling Mounted Fixed Shower Head. The 400mm rainfall showerhead brings a luxurious feel to your space, and with the flexibility to choose from two ceiling arms and install your valve either vertically or horizontally, you can tailor your shower setup to suit you.

Inside the valve, you will find an Anti Calc Thermostatic Cartridge, specifically designed to tackle common issues like sudden changes in water temperature and reduced water flow caused by blockages. To make the most of this advanced technology, simply press the safety button on the thermostatic handle and then adjust the temperature from hot to cold. This process effectively clears out any accumulated dirt, limescale, or debris that may have built up over time, ensuring your shower functions smoothly.

Shower Valve Features:
  • Modern 1 outlet concealed design with dual handle control
  • Sleek Chrome finish
  • Thermostatic valve with auto-shutoff mechanism protects you from sudden changes in temperature, helping prevent scalding
  • Anti Calc thermostatic cartridge - advanced anti-debris technology that helps prevent blockage & limescale build-up for effortless temperature control
  • Ceramic disc technology prevents any unwanted leaks or drips
  • Dual handle control - top diverts the flow of water between outlets and the bottom controls the water temperature
  • Interchangeable backplate design allows portrait or landscape orientation
  • Crafted from brass (valve body), stainless steel (backplate) & zinc alloy (handles)
  • Minimum water pressure required: 0.5 bar
  • WRAS Approved
  • Complies with BSEN 1111
  • Covered by a 10 year manufacturer’s guarantee

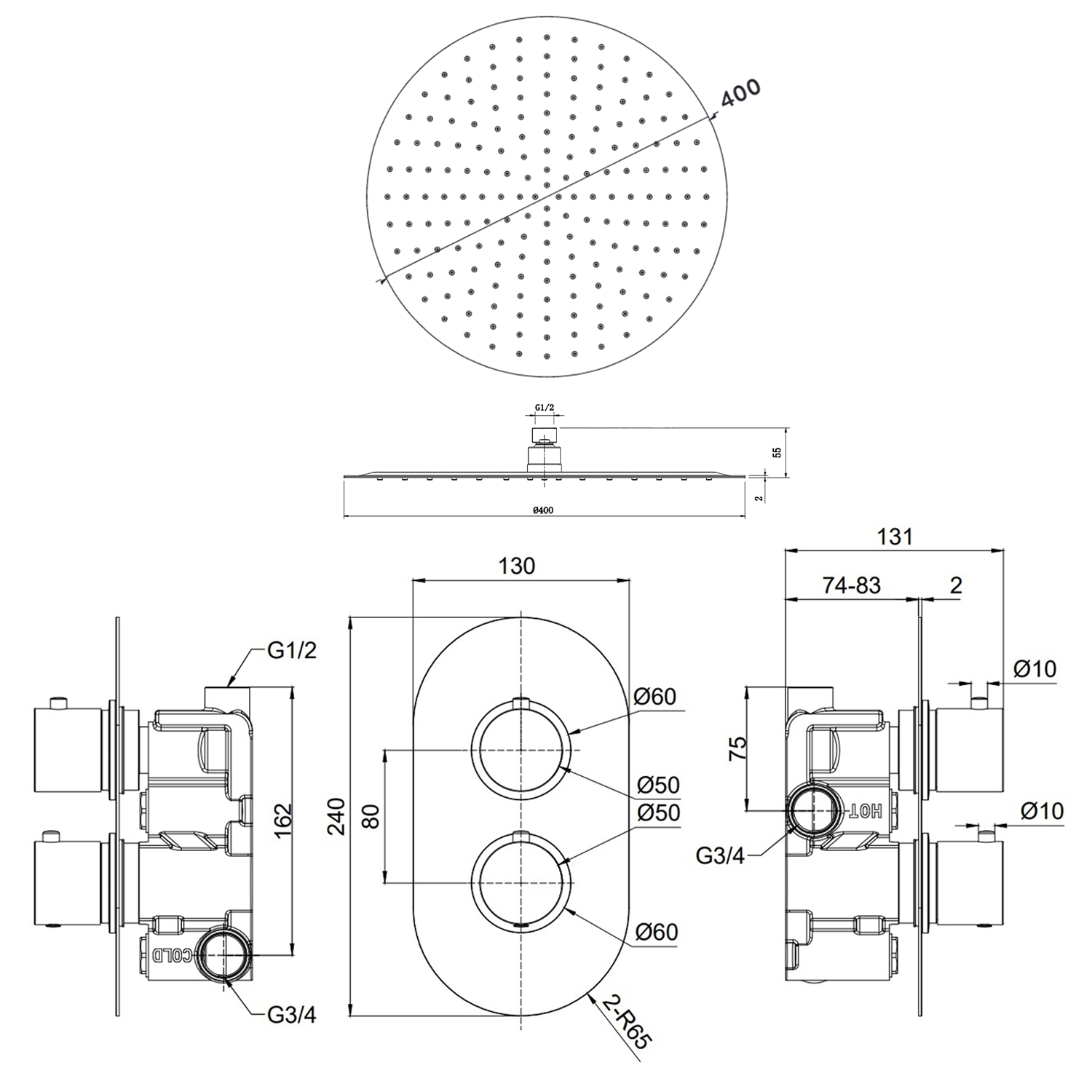

Dimensions:
  • Height: 240mm
  • Width: 130mm
  • Depth: 131.5mm

Flow rates:
  • 0.5 bar (l/min): 11.1 l/min
  • 1.0 bar (l/min): 15.5 l/min
  • 1.5 bar (l/min): 18.9 l/min
  • 2.0 bar (l/min): 21.8 l/min
  • 3.0 bar (l/min): 26.5 l/min
  • 4.0 bar (l/min): 30.5 l/min
  • 5.0 bar (l/min): 33.8 l/min

Shower Head Features:
  • 400mm stainless steel shower head in a sleek Chrome finish
  • Air Injection Technology - provides softer showering experience & reduces water usage by mixing air with water
  • Swivel joint easily adjusts the angle of the head
  • Easy-clean rubber nozzles for easy cleaning
  • 1 year manufacturer's guarantee

Ceiling Arm Features:
  • Choose from 150 & 300mm ceiling arms
  • Constructed from brass with a dazzling Chrome finish
  • 5 year manufacturer's guarantee

Product Overview
Product Code dr-brooke-concealed-shower-kit
Type Concealed Shower Sets
Brand Drench
Brand Range Drench Brooke
GuaranteeMore information Various

Guarantee

Please note that these guarantees are provided by the manufacturer, and will be subject to individual exclusions, exceptions, and terms and conditions, for example avoiding abrasive bleach-based cleaning products.

If you need further info about a specific manufacturer's guarantee, please contact our team.


Features
Material Brass, Stainless Steel
Number of Outlets 1 Outlet
Temperature Control Thermostatic
Popular Features Easy Clean Nozzles
Style
Finish Chrome
Shape Round
Handle Type Dual Control, Round
Texture Polished
Style Modern
Orientation Landscape, Portrait
Mounting Type Select an option first
Flow Rate
Flow Rate at 0.5 Bar (l/min) 11.1
Flow Rate at 1 Bar (l/min) 15.5
Flow Rate at 1.5 Bar (l/min) 18.9
Flow Rate at 2 Bar (l/min) 21.8
Flow Rate at 3 Bar (l/min) 26.5
Flow Rate at 4 Bar (l/min) 30.5
Flow Rate at 5 Bar (l/min) 33.8
Minimum Water PressureMore information 0.5

Minimum Water Pressure

Your water pressure depends on your home's water system. It’s important to consider water pressure when buying a new tap or shower. Buying a product with a minimum water pressure that’s too high for your home will result in poor performance.

- With a combi boiler you can usually expect between 1 and 2 bar

- With a gravity system (cold water tank in attic) you may have as little as 0.1 or 0.2 bar upstairs, and perhaps 0.5 bar downstairs

- With a high pressure unvented system (hot water cylinder, no cold water tank) you will generally have between 1 and 3 bar

You can install an item with a low minimum pressure rating on a high pressure system, but avoid installing an item with a high minimum rating on a low pressure system! Read our guide to water pressure to learn more.
